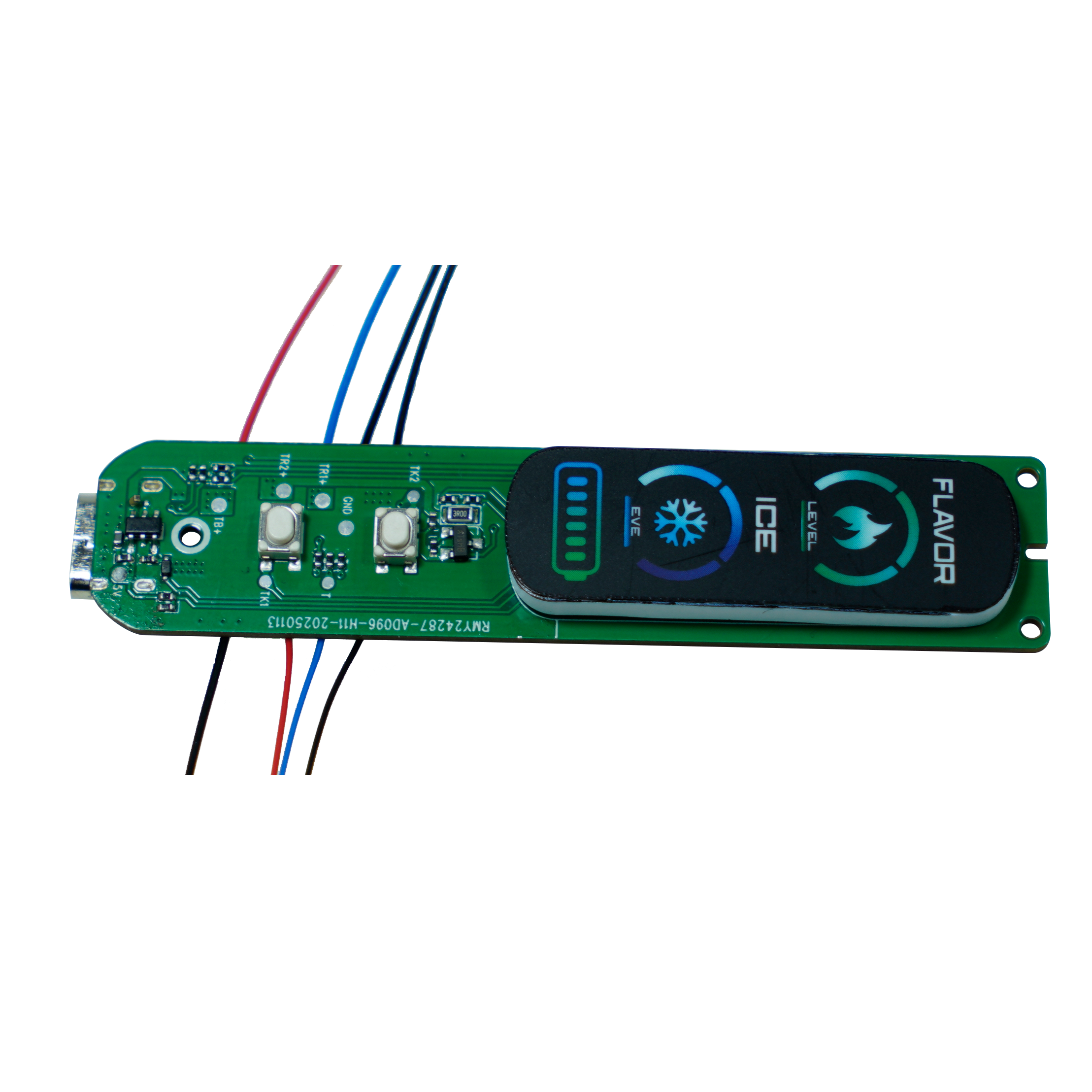

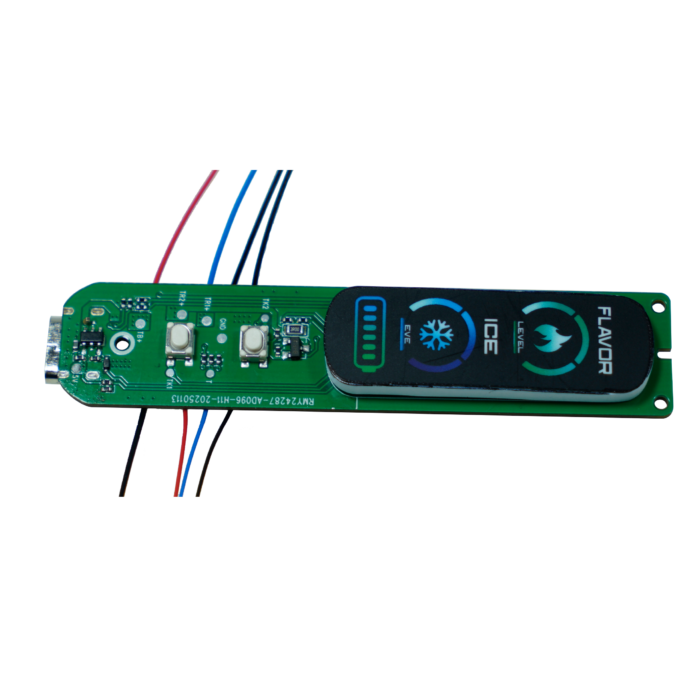

Dual Channel Vape Control Board – Flavor & Ice Modes with Digital Display

Intelligent Dual Output Control

The dual-channel vape control board gives precise power delivery to elevate the vaping experience. It supports a flavor channel with 12W constant output and a separate ice channel adjustable from 0–5W. The 0.4-second delay on the cooling channel adds a layered sensory effect. This separation creates rich vapor and a smooth cooling sensation with every puff.

Smart Digital Interface

The onboard display shows real-time vaping data, including battery level, output mode, and ice intensity. With animated battery bars, low/mid/high output indicators, and auto-dimming after 4 ไม่กี่วินาที, the screen is both intuitive and power-saving. The control board wakes with a button press and sleeps automatically when inactive, keeping usage efficient.

Ultra-Efficient and Safe Design

With <20μA standby current, the board conserves power between sessions. It runs on an 850mAh Li-ion battery and allows vaping while charging. The 8 built-in protections guard against overuse, low voltage, short-circuits, and more. These protections follow strict IEC standards, making the system reliable for end users and brands alike.

Type-C Charging & OEM Flexibility

The Type-C port supports PD fast charging and USB programming. The firmware can be updated and customized via USB. Brands can adjust resistance range, delay time, and power curves to match coil specs and user experience goals. Every board undergoes strict testing, including airflow sensor calibration and mesh coil compatibility checks.
